105mm 107mm T29 fiberglass backing pad with 2 metal rings top layer cloth reinforce fiber net cloth

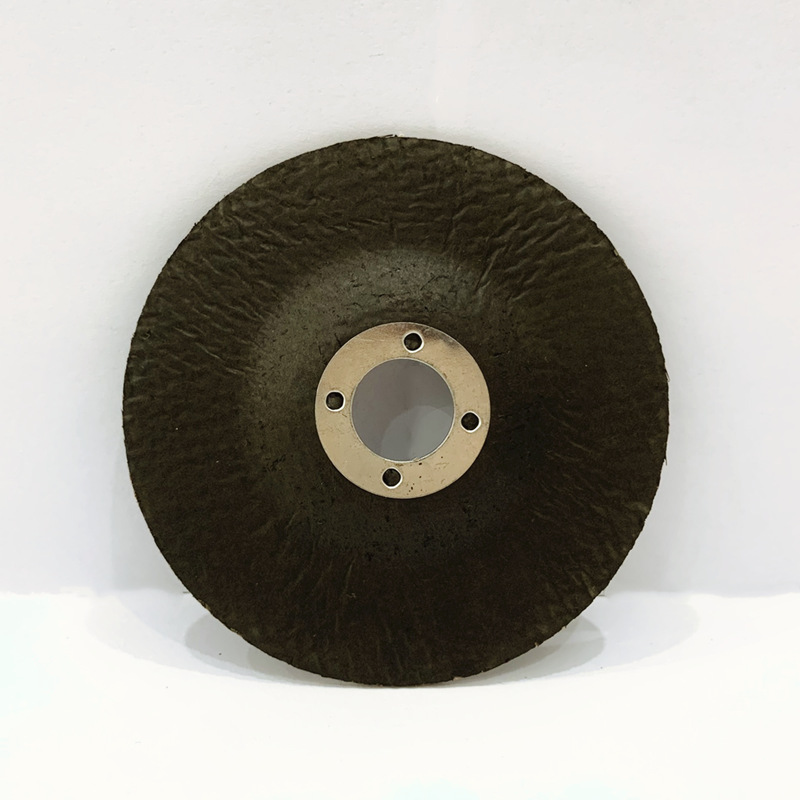

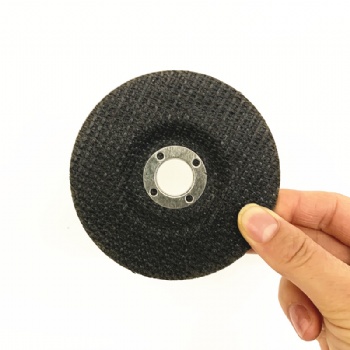

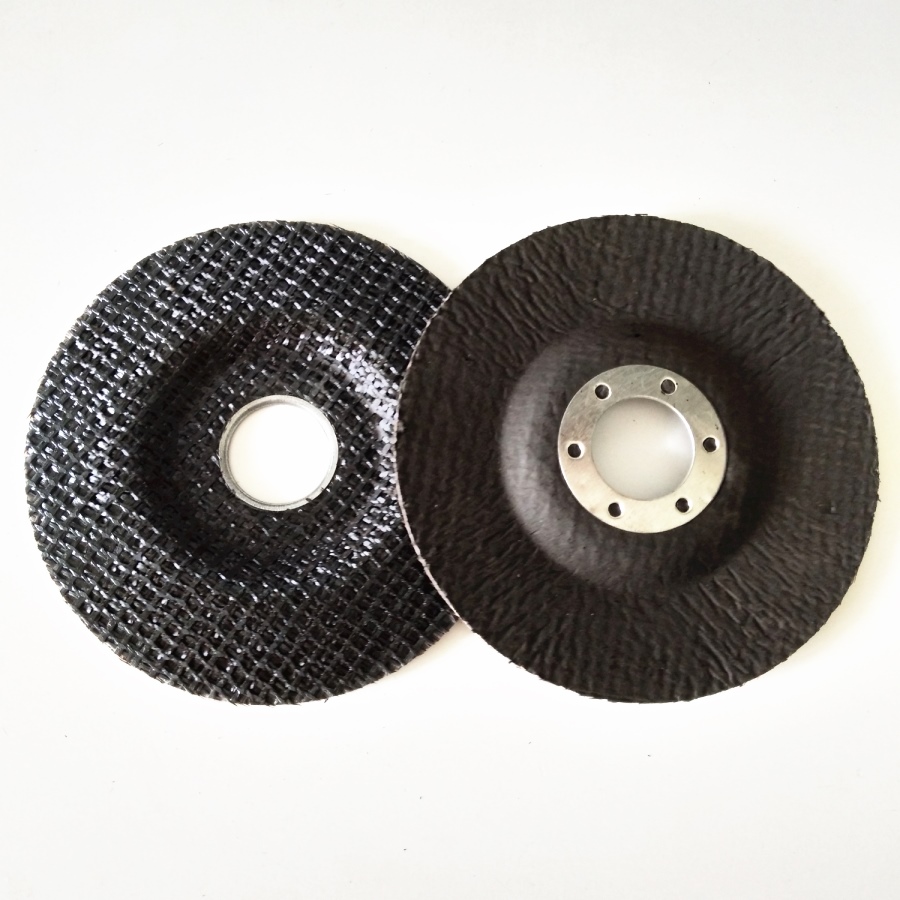

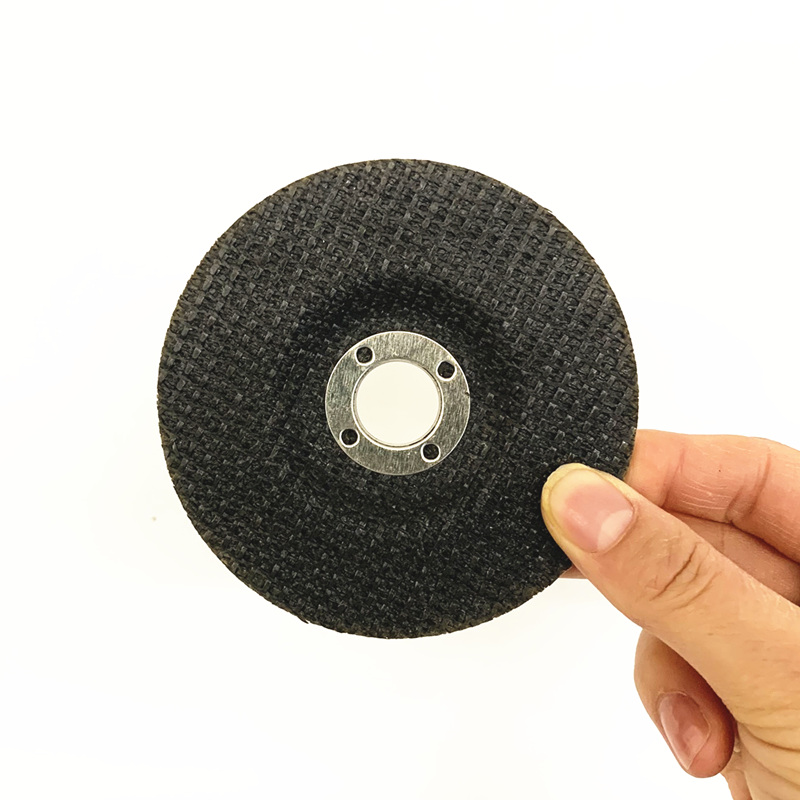

This 107mm fiberglass backing pad is with 2 metal rings, it is used for making 115mm 4.5inch abrasve flap disc flap wheels

Description
Inquiry

105mm 107mm T29 fiberglass backing pad with 2 metal rings top layer cloth reinforce fiber net cloth

Fiberglass backing pads is mainly used for making flap discs ,clean and strip disc, wool felt disc, non woven flap discs, diamond flap disc and other abrasive discs

Size: from 75mm-220mm

Rings: 1-2

Features

This Flap Disc Backing Pads are with High Quality Fiberglass Cloth with Phenolic Resin

High-strength fiberglass cloth with good flexibility, light-weight

Excellent bonding property and heat resistance

Strict detection, full inspection and random testing before shipping

Specification

Outer Size:	Inner Hole Size	Size for making flap discs	Layers	Metal Ring	Type
75mm	16mm	4x5/8"	6-9 layers	1-2	T27 / T29
88 90 92mm	16mm	4x5/8"	6-12 layers	1-2	T27 / T29
105 107mm	22.23mm	4 1/2 x 7/8"	6-12 layers	1-2	T27 / T29
115 117mm	22.23mm	5 x 7/8"	7-12 layers	1-2	T27 / T29
140mm	22.23mm	6 x 7/8"	7-12 layers	1-2	T27 / T29
170mm	22.23mm	7 x 7/8"	8-12 layers	1-2	T27 / T29
220mm	22.23mm	9 x 7/8"	10-14 layers	1-2	T27 / T29
