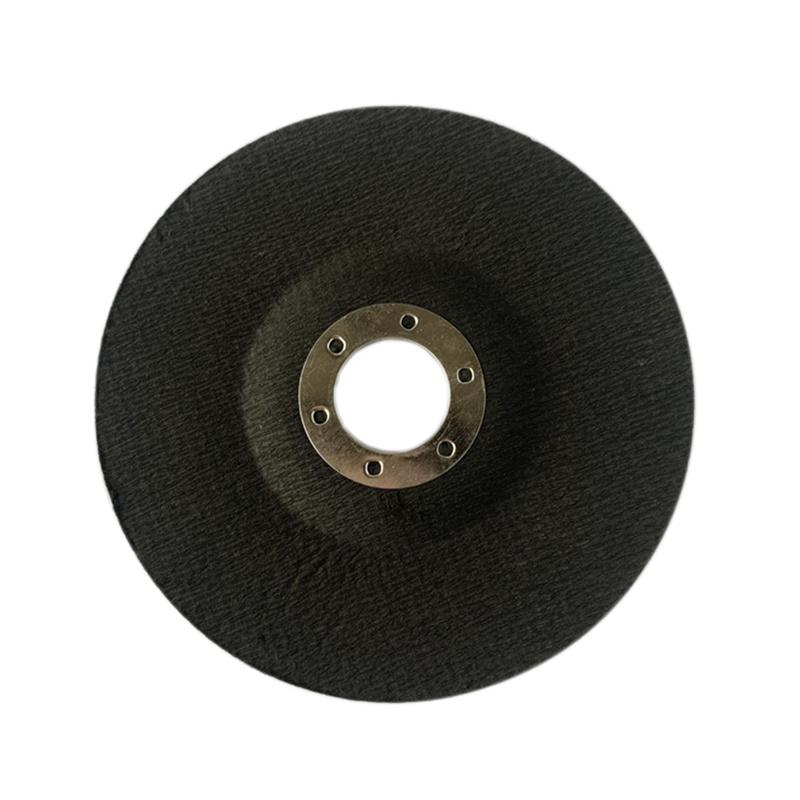

117mm T29 8+1 layers flap disc backing plate with top layer special wrinkle paper

This 117mm flap disc backing is with top layer wrinkle paper, it is T29 concave shape, it is better for corner grinding

Description
Inquiry

117mm T29 8+1 layers flap disc backing plate with top layer special wrinkle paper

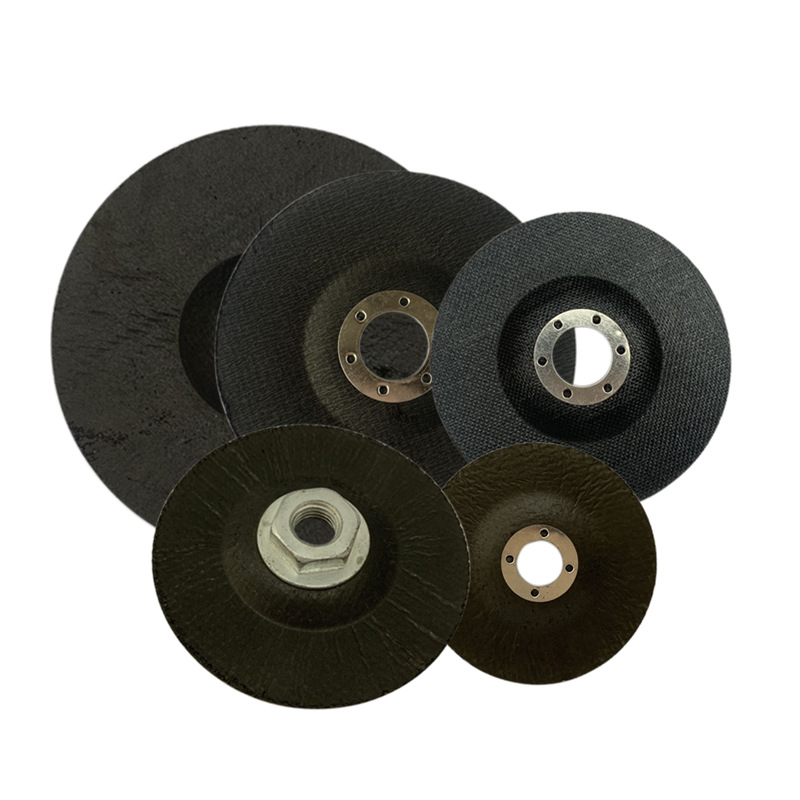

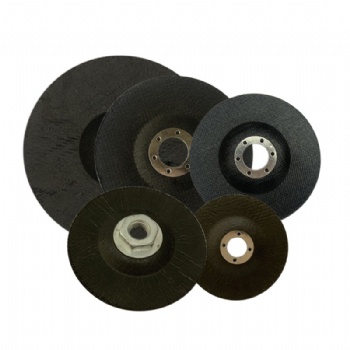

Fiberglass backing pads is mainly used for making flap discs ,clean and strip disc, wool felt disc, non woven flap discs, diamond flap disc and other abrasive discs

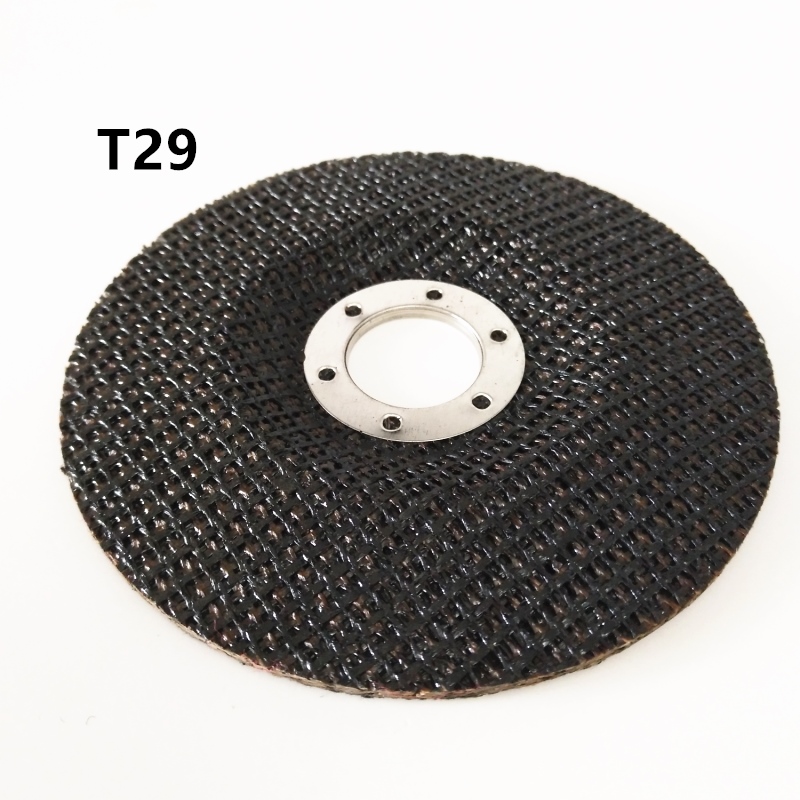

it is T29 concave shape, it is better for corner grinding

Size: 117mm 8+1 layers

Rings: 2 metal rings double side

Features

This Flap Disc Backing Pads are with High Quality Fiberglass Cloth with Phenolic Resin

High-strength fiberglass cloth with good flexibility, light-weight

Excellent bonding property and heat resistance

Strict detection, full inspection and random testing before shipping

Specification

Outer Size:	Inner Hole Size	Size for making flap discs	Layers	Metal Ring	Type
75mm	16mm	4x5/8"	6-9 layers	1-2	T27 / T29
88 90 92mm	16mm	4x5/8"	6-12 layers	1-2	T27 / T29
105 107mm	22.23mm	4 1/2 x 7/8"	6-12 layers	1-2	T27 / T29
115 117mm	22.23mm	5 x 7/8"	7-12 layers	1-2	T27 / T29
140mm	22.23mm	6 x 7/8"	7-12 layers	1-2	T27 / T29
170mm	22.23mm	7 x 7/8"	8-12 layers	1-2	T27 / T29
220mm	22.23mm	9 x 7/8"	10-14 layers	1-2	T27 / T29
