107mm T29 fiberglass backing pad for abrasive flap discs flap wheels

117mm T29 fiberglass backing plate with 2 metal rings double side

This fiberglass backing plate is with 117mm diameter, it is used for making 125mm abrasve flap disc, non woven flap wheels

Description
Inquiry

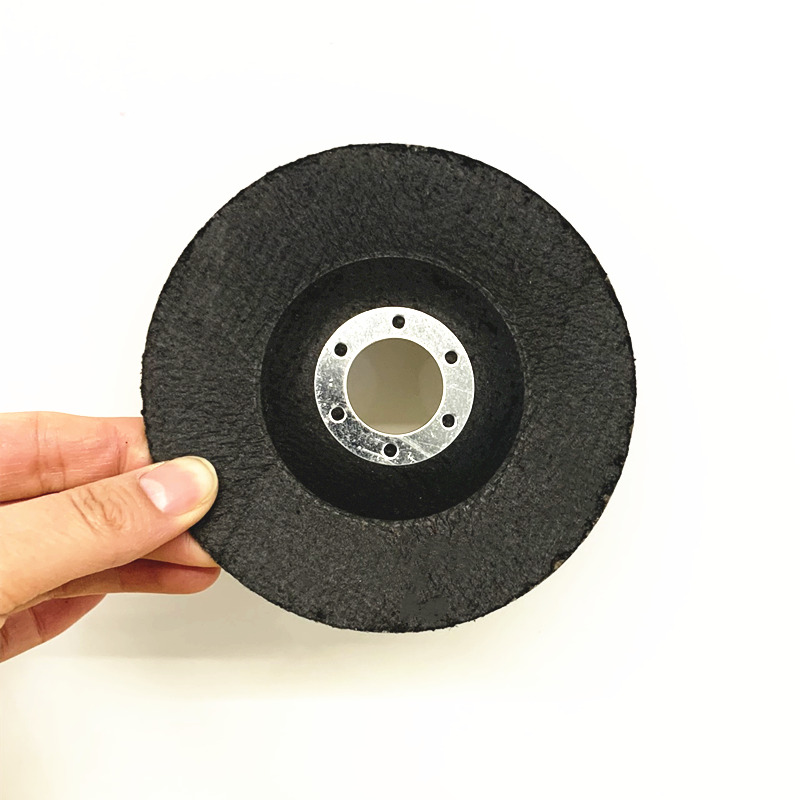

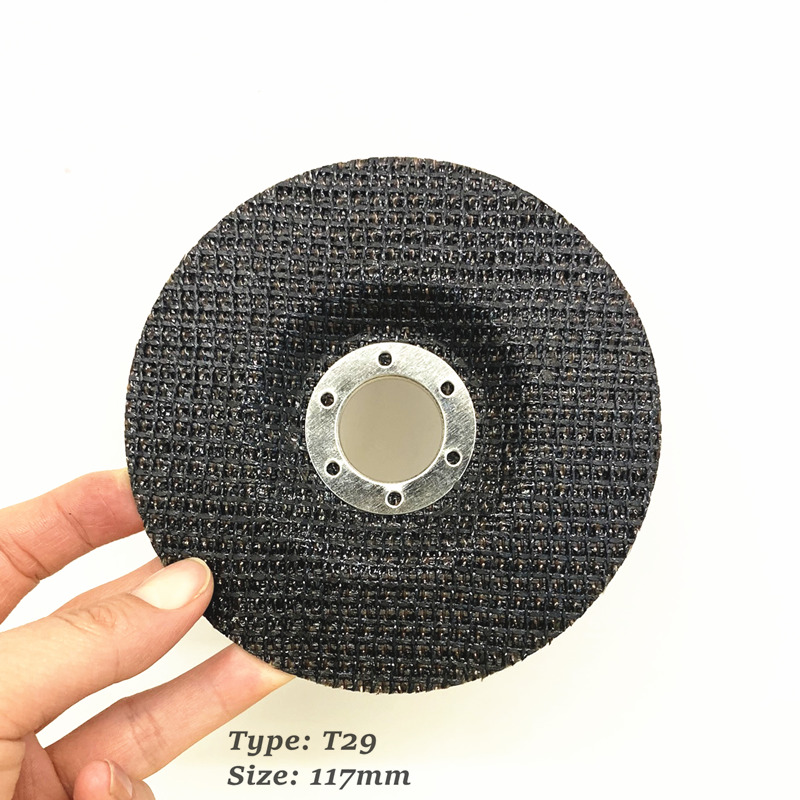

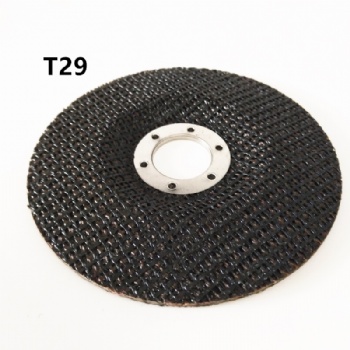

117mm T29 fiberglass backing plate with 2 metal rings double side

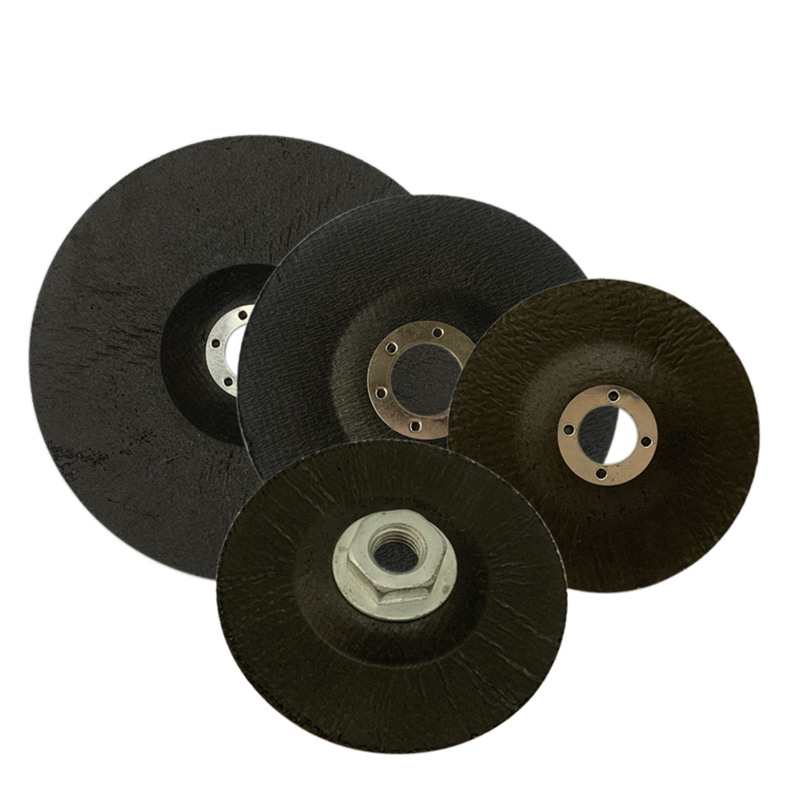

Fiberglass backing pads is mainly used for making flap discs ,clean and strip disc, wool felt disc, non woven flap discs, diamond flap disc and other abrasive discs

Size: from 75mm-220mm

Rings: 1-2

Features

This Flap Disc Backing Pads are with High Quality Fiberglass Cloth with Phenolic Resin

High-strength fiberglass cloth with good flexibility, light-weight

Excellent bonding property and heat resistance

Strict detection, full inspection and random testing before shipping

Specification

Outer Size:	Inner Hole Size	Size for making flap discs	Layers	Metal Ring	Type
75mm	16mm	4x5/8"	6-9 layers	1-2	T27 / T29
88 90 92mm	16mm	4x5/8"	6-12 layers	1-2	T27 / T29
105 107mm	22.23mm	4 1/2 x 7/8"	6-12 layers	1-2	T27 / T29
115 117mm	22.23mm	5 x 7/8"	7-12 layers	1-2	T27 / T29
140mm	22.23mm	6 x 7/8"	7-12 layers	1-2	T27 / T29
170mm	22.23mm	7 x 7/8"	8-12 layers	1-2	T27 / T29
220mm	22.23mm	9 x 7/8"	10-14 layers	1-2	T27 / T29
